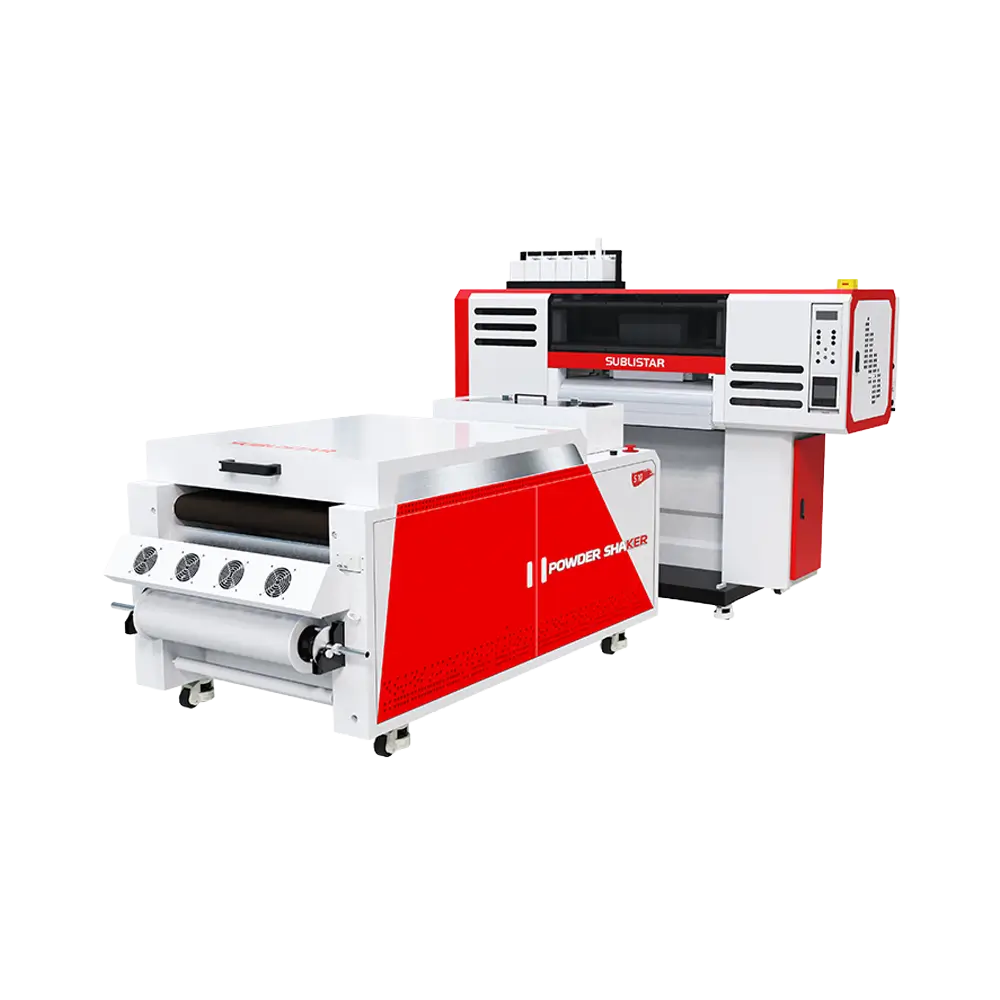

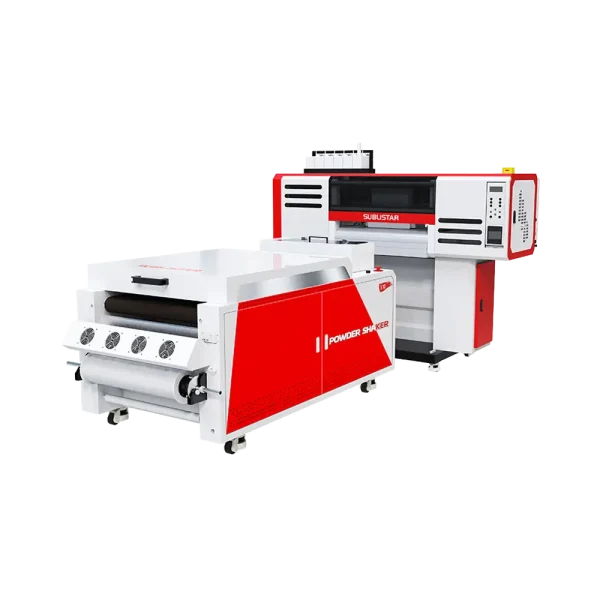

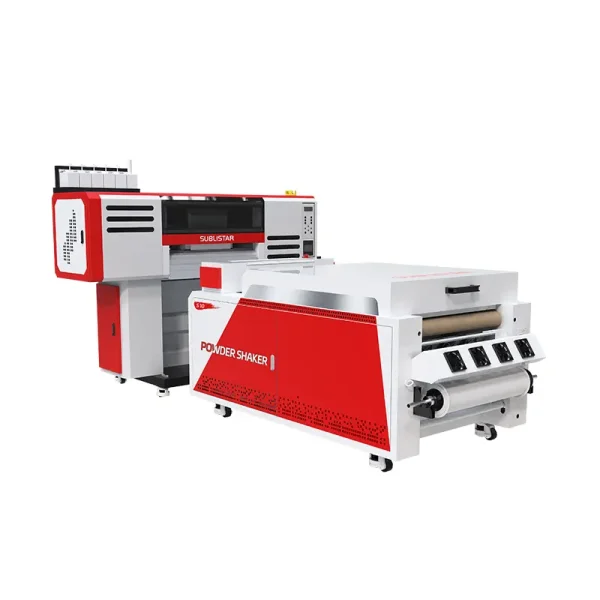

Sublistar Star IV 12-color DTF Printer
SS-DTF-6004
China
Sublistar
4 Epson I3200-A1 printheads
34
sqm and more per hour*
Robust Structure
Continuous Mass Production
Sublistar Star IV 12-color DTF Printer Offer
available in Vietnam and Southeast Asia*- 24 months Sublistar Warranty
- Ink Set: Sublistar ink Series:
1L of CMYKW inks each - DTF Film: 0.6m*100m
or 0.3m*100m roll size - DTF Powder: 2 kg
- Flexi Print/Maintop/
CADlink Digital Factory RIP Software - DTF Powder Shaker S10 Plus/Dual
- On-site installation by
professional technicians - Comprehensive
Print Training
The Sublistar Star IV 12-Color DTF Printer is engineered for decorators who need broader color capability and consistent production performance. With four Epson I3200 printheads, integrated powder application and drying, and optional 600 mm or 1200 mm working widths, the system supports smooth color transitions, crisp detail rendering, and efficient batch output for apparel workflows.
OR
Ultra Wide Color Gamut
The Sublistar Star IV 12-color printing architecture expands beyond standard process color sets, enabling smoother tonal transitions, richer accent shades, and more convincing reproduction of complex artwork. Selected configurations can incorporate light tones, fluorescent colors, or special colors such as orange, red, green, and blue.
High-Precision Printheads
Four Epson I3200 printheads in this Sublistar STAR IV 12-color printer are set up to produce high-quality results, with different sections for white and color layers to ensure clear edges, better color depth, and effective handling of multiple colors.
Multi-Printer Manager
By using a single computer to control multiple printers, the Multi-Printer Manager (MPM) feature allows workers to control Sublistar STAR IV 12-color machine production more quickly and boost overall production efficiency.
Advanced Pass System
Advanced algorithms and tension-controlled paper feeding are used to reduce visible streaks and uneven color printing, as well as blurred borders in printing. The pinch roller pressure in this Sublistar STAR IV 12-color can be changed based on the type of material being printed for printing accuracy.
Continuous Large Ink System
The Sublistar Star IV 12-color DTF Printer is equipped with a 1.5 L large ink supply bottle, which can continuously supply ink to the ink cartridge. This not only reduces downtime associated with frequent refills but also minimizes packaging waste.
Anti-Settling White Ink System
The white ink circulation system and precipitation-free ink maximize the prevention of the white ink from settling and ensure the smooth flow of white ink. The imported filter not only effectively intercepts large particles, gels, and other impurities but also allows the required pigment dyes to pass through and remain in the ink. Moreover, it also has excellent impurity filtering ability and a longer service life.

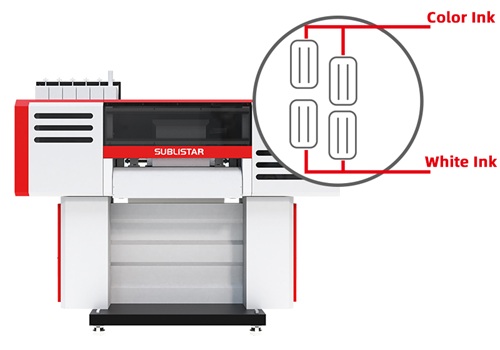

Staggered Printing Technology
A staggered printhead arrangement and variable-dot output help produce smoother gradients, stronger saturation, and more lifelike detail while maintaining efficient output across wider media.
Printhead Heating System
By heating the ink damper and the carriage base, the Sublistar STAR IV 12-color printer can work normally in a lower-temperature environment. In the printing process, this system ensures good fluidity of the ink and prevents the ink from getting clogged.
Front and Rear Heating Devices
The workable of the new generation Sublistar Star IV 12-color DTF printer is equipped with heating devices in the front and the rear directions, which can ensure that the printed pattern becomes dry instantly.
Automatic Cleaning System
Support automatic nozzle cleaning at regular intervals. When the Sublistar Star IV 12-color printer is online, it automatically loads ink and cleans automatically, which helps reduce overall maintenance costs and saves time through automation.
Epson I3200-A1 Printhead
The Sublistar STAR IV 12-color uses Epson I3200-A1 printheads, a widely adopted industrial choice for DTF production. Compared with entry-level alternatives, the I3200 platform offers higher nozzle density, reliable jetting frequency, strong color saturation, and precise output while remaining cost-efficient for commercial production. This printer is equipped with 4 Epson I3200-A1 printheads, depending on configuration, which provide vibrant color output, true-to-life design, and print accuracy.
Printhead Data | Epson I3200-A1 Printhead |
|---|---|
Ink Types |
Water based ink |
Dimensions |
69.1×59.4×35.6 mm |
Weight |
82 g |
Nozzle Number |
3200 nozzles |
Nozzle Row |
8 rows |
Max color |
4 colors |
Resolution |
300 npi/1 row, 600 npi/2 rows |
Effective Printing Width(mm) |
33.8 |
Jet Frequency |
43.2 kHz (single dot), 21.6 kHz (multi dot) |
Ink Drops |
3.8-6-12 (9.4) pl |
Ink Viscosity |
3~4 mPa.s |
Nozzle Online Recovery Technology
Nozzle Compensated
The nozzles will eject larger ink droplets to fill in the gaps and fix the missing printing issue when there are irregular lines and blank areas.
Automatic Nozzle Moisturizing
The ink cap will eject some moisturizer every once in a while to keep the nozzle moist and clean, preventing ink from clogging it. This maintenance can keep the printer nozzle in the best working state.
Automatic Nozzle Cleaning
Support automatic nozzle cleaning at regular intervals. When the printer is online, it automatically loads ink and cleans mechanically.
Automatic Ink Flash
In order to keep the nozzle clear, the ink is automatically circulated in the closed chamber and ejected from it in accordance with the settings.
Sublistar DTF ink
Sublistar Hi-pro DTF textile pigment inks maximize the ink’s brightness, sharpness, and color reproduction for the Sublistar DTF printer. What you see is what you print. Gradients, small letters, and details are all expressed in detail when printing. Using spot colors gives you a wider color gamut.
Features:
- Excellent stunning print effect;
- Light and soft, effectively prevent dye migration;
- Environmentally and user-friendly;
- Excellent ink fluency, continuous printing;
- Not limited by materials and fabrics, both natural fibers and synthetic fibers are suitable;
- Grades 4-5 include light fastness, wet rubbing fastness, dry rubbing fastness, and washing fastness.
Sublistar DTF Hot Melt Powder
Sublistar DTF powder is specially used for DTF printing. This hot melt powder is a high-purity TPU powder that adheres to ink more precisely than film and has good washability as well as adhesion. Slow-drying and easy to cold-tear. This revolutionary technology will help you get excellent transfer printing results.
- Excellent washing resistance and elasticity.
- Excellent dry-cleaning resistance.
- Excellent bonding strength and fabric lamination.
- Excellent endurance; no pollution.
- Soft feeling.
- Mixed with water-based glue or dusting printing processes.
DTF PET Film
Sublistar DTF films have outstanding anti-static and anti-blocking qualities as well as ink absorption. Non-slip, no oil, no sticking, uniform coating, and easy to peel off. In addition, the final image can be enhanced with a matte, glitter, or shiny effect in hot or cold peel versions, as well as a super soft touch effect. This PET film is specially designed for DTF printers, suitable for mass production, high efficiency, and cost-effectiveness.
DTF Special Film
DTF Rainbow Reflective Film
DTF Rainbow Reflective Film for shining reflective light
DTF Laser Reflective Film
DTF Laser Reflective Film for shining reflective light
DTF Luminous Film
DTF Luminous Film for green light in the dark
DTF Temperature Change Film
DTF Temperature Change Film for more color change
DTF Glitter Transfer Film
DTF Glitter Transfer Film for shiny finishing on prints
DTF Metallic Gold/Silver Film
DTF Metallic Gold/Silver Film for stunning effect

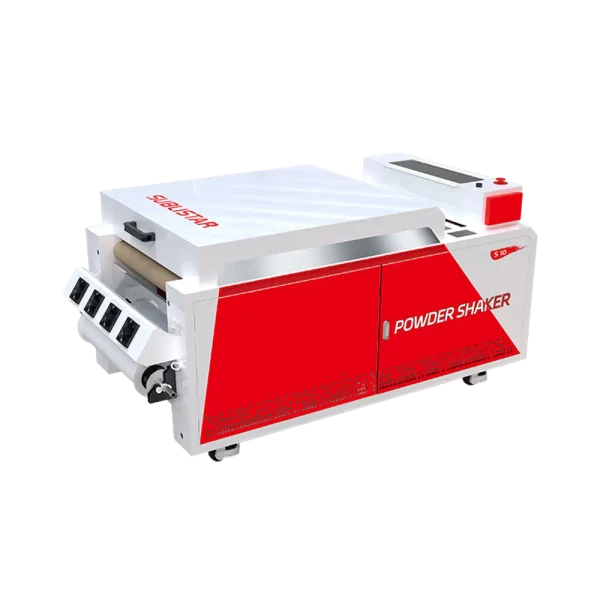

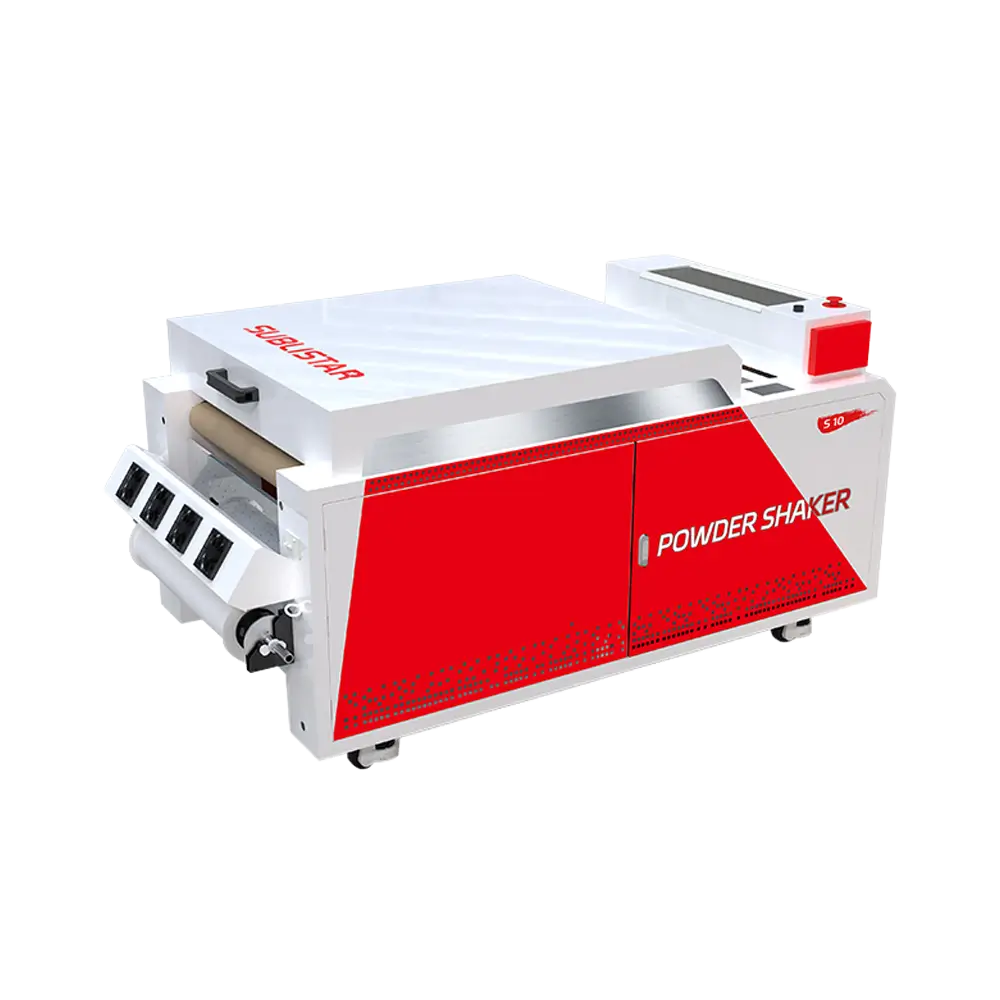

DTF Powder Shaker Machine S10 Dual
Enhance your DTF printing process more with our DTF Powder Shaker Machine S10i Dual or S10i Plus Dual. This machine applies hot melt powder on print films, automatically spreads powder, shakes powder, heats and dries, and provides one-stop printing of heat transfer products, improving work efficiency and reducing labor costs.
With DTF printers, batch orders can be completed efficiently and quickly, and personalized orders can also be completed in bulk.
When you purchase our Sublistar STAR IV 12-color DTF printer, it comes with this professional DTF powder shaker.
Features
Adjustable Built-In Heating Tube
Flexible infrared heating tubes, S10 heating tubes with reserved space. The number of heating tubes can be increased according to actual needs. Heat the transfer film more evenly. Achieve a better curing effect with lower power, which can lead to energy savings and improved efficiency in the printing process.
Anti-Roll-In Fan
The anti-inhalation fan protects the operator’s safety, avoiding bending down to take up the roll, hair, or lighter decoration on the body being caught and causing unnecessary injuries.
Automatic Take Up Reel System
Realize high quality take up reel, avoiding the phenomenon of untidy manual take up reel, which helps manual cutting or machine cutting.Exhaust Pipe Purification
Effectively avoids dust overflow in the printing process, avoids staff inhalation, and is more conducive to environmental health.Double Curing Oven
The double curing oven meets the rapid curing requirements of batch production, high speed, and high precision output.
Preheating Bin for Hot Melt Powder
Reduces the moisture of hot melt powder, allowing it to flow smoothly without accumulating powder. Meanwhile, the new partition in the powder bin reduces powder leakage and the frequency of manual powder return.Leakage Protection Function
It can effectively prevent leakage caused by power failure or unstable voltage and protect the equipment circuit and personnel safety.
Low-Frequency Powder Recycling
Low-frequency powder recycling helps minimize the leakage of powder and reduce the frequency of manual powder backup.
Integrated Permanent Purifier
Sublistar self-developed smoke purification treatment technology: no need to replace the filter element regularly.

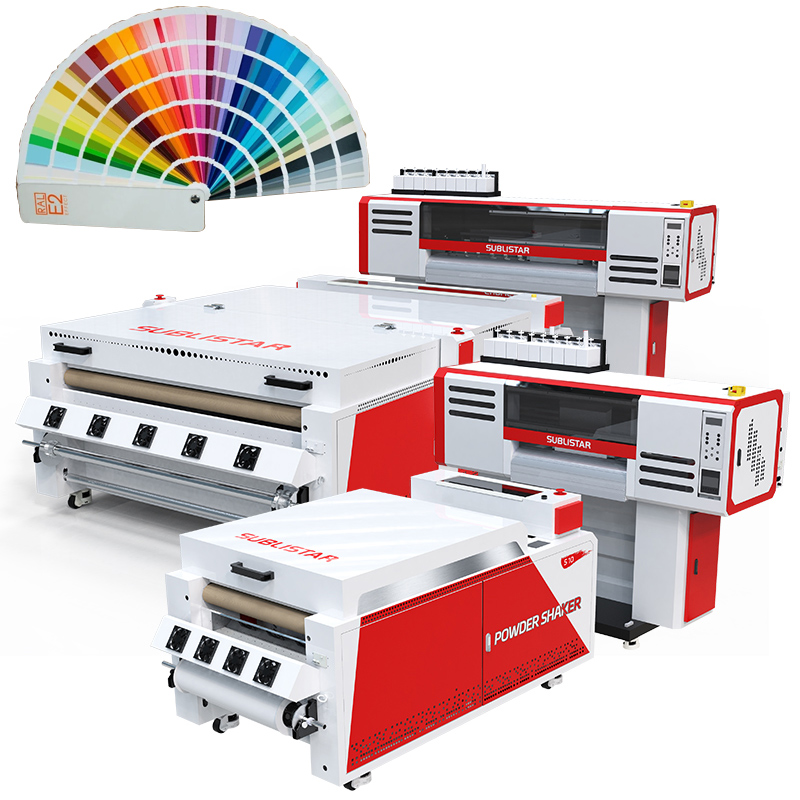

Depending on the particular printer model, the Sublistar STAR IV 12-color Series have different variables:
- Print width;
- Print speed;
- Dimensions and weight;
- DTF powder shaker.
Model | DTF-6004 Star IV | DTF-1204 Star IV |
|---|---|---|
Amount of printheads |
4 | |
Print Resolution/Speed |
4pass:22m²/h 6pass:16m²/h 8pass:12m²/h |
4pass:22m²/h – 34m²/h 6pass:16m²/h – 24m²/h 8pass:12m²/h – 16m²/h |
Print width |
600 mm |
1200 mm |
Dimensions |
1766*750*1513mm (L*W*H) |
2466*1514.8*853mm (L*W*H) |
Package Size |
1880*1060*740mm (L*W*H) |
2540*1060*700mm (L*W*H) |
Package Weight |
210KG |
500KG |
Sublistar Warranty
Warranty starts from the date of the equipment handover after the installation and is provided as follows:
- Machinery: 24 months (electronic, electrical and mechanical)
- Printheads: 3-6 months
Warranty Coverage
The warranty specifically covers parts with manufacturing defects within the stated warranty period. It includes the replacement of defective parts (excluding consumables). If the warranty ends, the customer will be responsible for any parts costs and troubleshooting. Customers can install parts themselves or use their technicians, but Sublistar is not responsible for damage caused during the self-repair process.
Media Handling:
Maximum Width: 600mm or 1200mm
Media Thickness: 1.5mm to 6mm adjustable
Media Types: PP Synthetic Paper, Vinyl Sheet, Film, Coated Paper, Canvas, Adhesive Vinyl Sheet, Banner and so on.
Ink Specifications:
Ink Types: Water Based Ink, Dye Ink, Sublimation Ink
Ink Colors:
Cyan, Magenta, Yellow, Black, Light Black, Light Light Black, Light Cyan, Light Magenta, Orange, Red, Blue, Green, White
Ink Capacity: 1.5L
RIP Software / operating system:
4pass: 22 m²/h – 34 m²/h
6pass: 16 m²/h – 24 m²/h
8 pass: 12 m²/h – 16 m²/h
Printhead:
Maximum resolution:
1800 dpi
Network Port, USB 2.0
Front/Mid/Rear Heaters (individually controllable)
Environment conditions:
Temperature: 20 – 35°C; Humidity 35 – 65 %
Power Supply:
AC110V+/- 10%, AC220V+/-10%, 50/60+/HZ
DTF-6004 STAR IV: 1766*750*1513 mm (L*W*H)
DTF-1204 STAR IV: 2466*1514.8*853 mm (L*W*H)
DTF-6004 STAR IV: 1766*750*1513 mm (L*W*H). Weight: 210kg
DTF-1204 STAR IV: 2466*1514.8*853 mm (L*W*H). Weight: 500kg
Featured Videos |
Sublistar STAR IV 12-COLOR Industrial DTF Printer
Visit the Sublistar printer showroom in Nanjing, China, a brand with over 17 years of experience in the industry. Most Sublistar machines are designed to meet the criteria and standards sought by international customers, especially European clients. Here you’ll find a range of machines for various workshop sizes, from DTF and UV to dye-sublimation.
Sublistar STAR IV 12-COLOR DTF Printer | Sample Prints
