For print factories and high-volume operations, consistency in small-feature transfers is non-negotiable. Tiny letterforms, intricate graphics, and multi-color logos demand even ink coverage – across every print. The Epson SureColor SC‑G6030, a 35‑inch direct to film printer, is engineered precisely to solve this industry-wide issue by ensuring consistent, high-detail output on small designs across large runs.
Why Small-Design Print Quality Matters
Small details – like 1 cm text or intricate line art – can make a significant impact on brand perception. Inconsistent results in these areas often stem from uneven ink distribution, film shifting or misalignment, and inaccurate white underbase coverage. These problems not only affect the visual quality of the print but also lead to increased waste, reprints, and production delays. For apparel manufacturers producing hundreds or even thousands of garments daily, investing in a high-quality DTF printer is a smarter and more cost-effective choice than constantly correcting post-print issues.

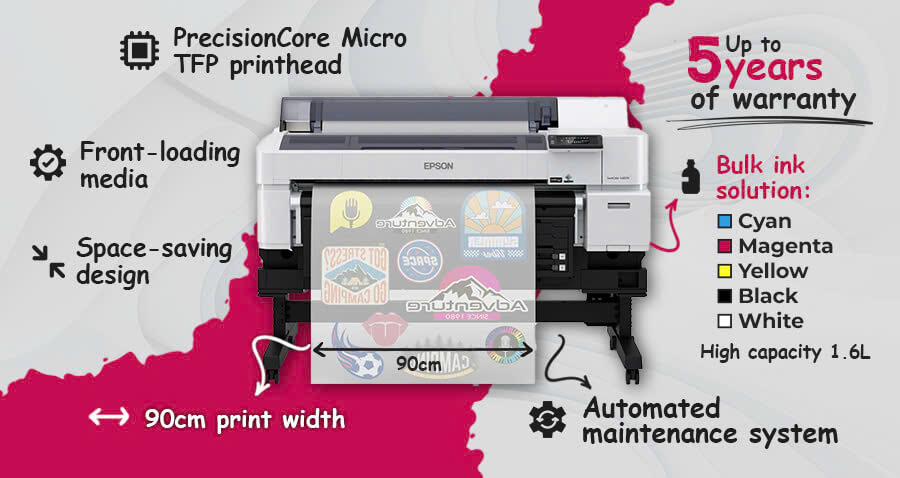

Epson SureColor SC‑G6030: How It Solves High-Detail Print Challenges
1. PrecisionCore Micro‑TFP Printhead + Nozzle Verification
Equipped with Epson’s high-performance PrecisionCore Micro‑TFP printhead, the SC‑G6030 ensures precise droplet placement. Built‑in nozzle verification reduces misfires and maintains consistency – especially vital for small designs.
2. UltraChrome DF Ink with White Circulation System
The ultra‑opaque white ink is continually circulated to prevent sedimentation. This avoids spotting or void areas in the underbase – effectively eliminating common root causes of uneven small-detail transfers.
3. Wide Roll Width with Built‑in Cutter
Its 35.4″ (900 mm) roll width accommodates multiple transfers side-by-side. The integrated cutter ensures clean edges -crucial for tiny details where any misalignment reveals flaws.
4. Automated Maintenance, Low Downtime
With weekly automated maintenance and minimal intervention, the SC‑G6030 maintains peak performance – significantly reducing variability during mass production.
Factory‑Scale Benefits
Consistent Small-Detail Output: PrecisionCore technology and nozzle alerts ensure that every transfer, even with very small fonts or design elements, prints sharply and reliably.
Boosted Productivity with Low Waste: Large roll width and auto-cutter mean faster batch production and fewer errors. Automated upkeep also minimizes downtime, boosting overall throughput.
Scalability with Predictable Quality: For businesses handling mixed small and large runs, the SC‑G6030 provides repeatable detail quality run after run, which is essential when scaling production.
Performance Highlights
|
Epson SC-G6030 Direct To Film Printer
|
|
|---|---|
|
RIP Software
|
Epson Edge Print Pro CADlink Digital Factory v11.1 Direct to Film Edition |
|
Paper Width
|
254 – 900 mm (10″ to 35.4″)
|
|
Maximum Printable Width
|
894 mm; Side Margin: 3 mm left & right, 5 mm top & bottom
|
|
Printhead
|
PrecisionCore MicroTFP Printhead
|
|
Maximum resolution
|
600 x 1,200 dpi
|
|
Maximum Print Speed
|
32.6 m2/h
|
|
Nozzle configuration
|
3,600 nozzles 8 channel, 2 x 400 per color |
|
Acoustic noise level
|
Sound Pressure Level: 51.1 db(A)
|
|
Utility Software
|
Web delivery: Online Manual, Epson Video Manuals, User’s Guide, Network Guide, Setup Guide, Safety Instructions, Epson Support |
|
Power
|
AC 100-120V, 220-240V, 50-60Hz, Operating – 80W, Sleep – 20W
|
|
Environment characteristics
|
Operating: 10 – 35℃ with 20-80% RH (no condensation) Storage (before unpacking): -10°C to 60°C (1 month at 40℃, 120 hours at 60℃) with 5 – 85% RH (no condensation) Storage (after unpacking): -20°C to 40°C (1 month at 40℃) with 5 – 85% RH (no condensation) |
|
Weight and size
|
Dimensions: 1,608 mm x 746 mm x 1,128 mm Weight: 133 kg |
Why It May Outperform Other Small-Design Systems
While some desktop DTF units can produce fine detail, they often suffer from:
- Slower production speeds on roll media
- Manual cutter or trimming errors
- Nozzle clogs due to less advanced circulation
- Smaller width, requiring more frequent reloads
The SC‑G6030 addresses these in a single, high-volume-capable machine.
Final Verdict
If you manage factory-scale operations where design detail matters – especially on smaller graphics – the Epson SureColor SC‑G6030direct to film printer is a precision, high-throughput solution. With robust nozzle technology, white ink maintenance, auto-cutter, and certified inks, it ensures every small design is reproduced clearly and consistently – batch after batch.
Talk to Fluxmall to demo the SC‑G6030 and experience professional-grade small-detail transfer at scale.
