Textalk TGR Series Hybrid Printer – Overview

June 27, 2025
4:35 pm

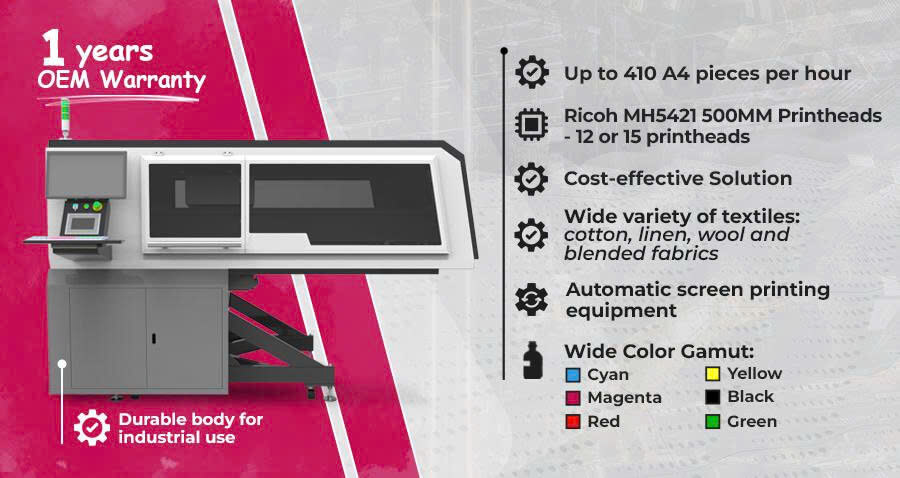

Textalk TGR Series – Hybrid DTG printer
at first glance

Textalk TGR series hybrid printer is a significant development in the garment printing industry, designed for businesses looking to combine the benefits of traditional screen printing with the flexibility and detail of digital printing. By adding DTG to the screen printing workflow, this printer is ideal for on-demand garment printing on various textiles, can produce up to 410 A4-sized pieces per hour.

Ricoh MH5421 500MM Printheads

Textalk Pigment Inks

OEKO-TEX®

A-01 verification

Textalk TGR Series – Hybrid DTG printer’s
Key Feature

High Performance Printheads and Industrial-Grade Build

Designed for high-volume production, these features ensure smooth and consistent printing, making it a reliable choice for businesses looking to streamline their printing process.

Wide Color Gamut and Digital Machines Integrated

Handle on-demand printing efficiently on various garment and textile types while compatible with your current textile production line.

What is Hybrid Printing?

Hybrid printing combines traditional screen printing (typically for underbases) with digital printing for full-color layers. This approach is ideal for high-volume production where both cost-efficiency and visual detail are needed.

Use screen printing for base layers, flat colors, and large volumes.
Use DTG to add detailed images, gradients, or customization on top.

Screen printing

Screen printing is a method where designs are applied to garments by pressing ink through a mesh that is partially blocked off by a pattern form. This technique is classified as an indirect garment printing method due to its use of a mesh medium.

Direct To Garment printing

DTG is a water-based printing method that sprays ink directly onto the garment. It requires pretreatment for dark garments and is most efficient for orders ranging from one to a few dozen units.

Take your industry to the next level

The Textalk TGR Series is ideal for businesses looking to target markets like clothing, home textiles, and promotional items.

Huge Range of
Colors Options

Maximum
Possible Detail

Perfect Panthone
Color Match

Great for High-volume
Jobs

Can Be Used on Almost Garments and Fabrics

Consumables – Inks and Printheads

Hybrid Digital Inks

Textalk enviromentally friendly pigment ink stands out in the world of industrial grade hybrid printing. Designed to deliver deep, rich blacks and outstanding color saturation, it’s engineered to deliver impeccable color quality. The inkset shows excellent color fastness to washing, dry/wet rubbing fastness, and bright colors.

The Textalk pigment ink offers garment and textile printers a whole new level of creativity. Featuring six vibrant ink colors:

Cyan TP5032C

Magenta TP5032M

Yellow TP5032Y

Black TP5032BK

Red TP5032R

Green TP5032G

Learn More

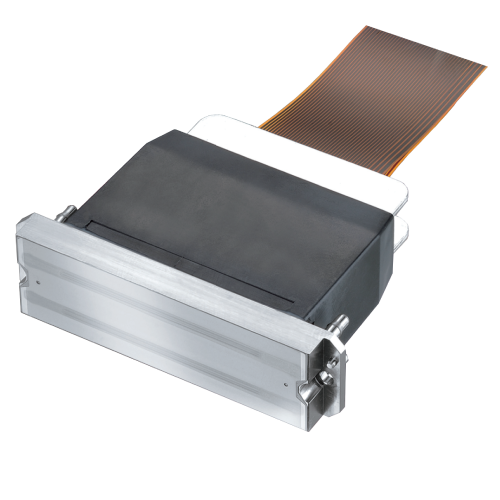

Ricoh MH5421 500MM Printheads

The Ricoh G5 MH5421 Printhead jet at speeds up to 7 cm/s and frequencies of up to 60 kHz, ensures fast and consistent performance. Compatible with water inks, it meets diverse printing needs. With a remarkable lifespan of 100 billion actuations per nozzle and backed by a manufacturer warranty, it guarantees long-lasting quality.

This printhead is a printing component of remarkable quality and performance. It features a native resolution of 600 dpi, ensuring precision and clarity in printed output. This printhead offers the impressive capability to jet up to 4 colors, rendering it suitable for a wide range of color printing applications. Moreover, it exhibits compatibility with various types of inks, including UV, solvent, water-based, and others. Its variable drop capacity, supporting 4 levels of grey, allows for precise control, enhancing the overall print quality.

Learn More
