Sublistar DTF-1200 Series Star IV DTF Printer
SS-DTF-1200
China
Sublistar
2/3/4/5 Epson I3200-A1 printheads
38
sqm and more per hour*
Robust Structure
Continuous Mass Production
Sublistar DTF-1200 Series Star IV DTF Printer Offer
available in Vietnam and Southeast Asia*- 24 months Sublistar Warranty
- Ink Set: Sublistar ink Series:
1L of CMYKW inks each - DTF Film: 0.6m*100m
or 0.3m*100m roll size - DTF Powder: 2 kg
- Flexi Print/Maintop/
CADlink Digital Factory RIP Software - DTF Powder Shaker S10 Plus/Dual
- On-site installation by
professional technicians - Comprehensive
Print Training
The Sublistar DTF-1200 Series STAR IV is a wide-format direct-to-film system developed for medium and large print operations that require rapid, stable output. The system allows for both standard white-ink printing and expanded color configurations by pairing a 1200 mm printer with a synchronized powder shaker. This is why it can produce unique applications that only this DTF printer can offer. Moreover, it is built to deliver high throughput and consistent image quality across bulk apparel orders.
OR
Wide Color Gamut
The exceptional feature of the Sublistar DTF-1200 series resides in its ability to meet diverse needs. From a fluorescent color scheme to minimization, it can achieve it all. Beyond standard CMYK and white, selected configurations can incorporate light tones, fluorescent colors, or special colors such as orange, red, green, and blue. This provides broader design flexibility for standout transfer effects.
Large Width, Fast Speed
This 1200 mm platform is engineered to combine production speed with dependable image quality. Its Sublistar DTF-1200 series printer and shaker pairing use a dual-oven, dual-purification approach to accelerate drying and improve throughput for bulk transfer work. Its large print size offers new opportunities for applications requiring large dimensions, such as floor mats, curtains, banners, etc.
Multi-Printer Manager
By using a single computer to control multiple printers, the Multi-Printer Manager (MPM) feature allows workers to control machine production more quickly and boost overall production efficiency.
Advanced Pass System
Advanced algorithms and tension-controlled paper feeding are used to reduce visible streaks and uneven color printing, as well as blurred borders in printing. The pinch roller pressure in this Sublistar DTF-1200 series can be changed based on the type of material being printed for printing accuracy.
Continuous Large Ink System
The Sublistar DTF-1200 Series DTF Printer is equipped with a 1.5 L large ink supply bottle, which can continuously supply ink to the ink cartridge. This not only reduces downtime associated with frequent refills but also minimizes packaging waste.
Anti-Settling White Ink System
The white ink circulation system and precipitation-free ink maximize the prevention of the white ink from settling and ensure the smooth flow of white ink. The imported filter in this Sublistar DTF-1200 series not only effectively intercepts large particles, gels, and other impurities but also allows the required pigment dyes to pass through and remain in the ink. Moreover, it also has excellent impurity filtering ability and a longer service life.
Staggered Printing Technology
A staggered printhead arrangement and variable-dot output in this Sublistar DTF-1200 series help produce smoother gradients, stronger saturation, and more lifelike detail while maintaining efficient output across wider media.
Printhead Heating System
By heating the ink damper and the carriage base, the printer can work normally in a lower temperature environment. In the printing process, this system ensures good fluidity of the ink and prevents the ink from getting clogged.

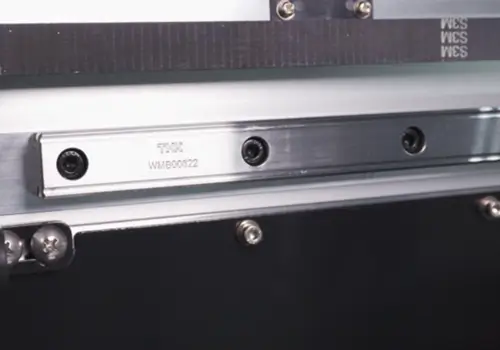

Stable Operating Environment
High-precision silent guides, an easy-to-use control platform, and a wide-format build intended for reduced maintenance help create a more stable workflow and a more comfortable production environment.
Automatic Cleaning System
Support automatic nozzle cleaning at regular intervals. When the Sublistar DTF-1200 series printer is online, it automatically loads ink and cleans automatically, which helps reduce overall maintenance costs and saves time through automation.
Epson I3200-A1 Printhead
Printhead Data | Epson I3200-A1 Printhead |
|---|---|
Ink Types |
Water based ink |
Dimensions |
69.1×59.4×35.6 mm |
Weight |
82 g |
Nozzle Number |
3200 nozzles |
Nozzle Row |
8 rows |
Max color |
4 colors |
Resolution |
300 npi/1 row, 600 npi/2 rows |
Effective Printing Width(mm) |
33.8 |
Jet Frequency |
43.2 kHz (single dot), 21.6 kHz (multi dot) |
Ink Drops |
3.8-6-12 (9.4) pl |
Ink Viscosity |
3~4 mPa.s |
Nozzle Online Recovery Technology
Nozzle Compensated
The nozzles will eject larger ink droplets to fill in the gaps and fix the missing printing issue when there are irregular lines and blank areas.
Automatic Nozzle Moisturizing
The ink cap will eject some moisturizer every once in a while to keep the nozzle moist and clean, preventing ink from clogging it. This maintenance can keep the printer nozzle in the best working state.
Automatic Nozzle Cleaning
Support automatic nozzle cleaning at regular intervals. When the printer is online, it automatically loads ink and cleans mechanically.
Automatic Ink Flash
In order to keep the nozzle clear, the ink is automatically circulated in the closed chamber and ejected from it in accordance with the settings.
Sublistar DTF ink
Sublistar Hi-pro DTF textile pigment inks maximize the ink’s brightness, sharpness, and color reproduction for the Sublistar DTF printer. What you see is what you print. Gradients, small letters, and details are all expressed in detail when printing. Using spot colors gives you a wider color gamut.
Features:
- Excellent stunning print effect;
- Light and soft, effectively prevent dye migration;
- Environmentally and user-friendly;
- Excellent ink fluency, continuous printing;
- Not limited by materials and fabrics, both natural fibers and synthetic fibers are suitable;
- Grades 4-5 include light fastness, wet rubbing fastness, dry rubbing fastness, and washing fastness.
Sublistar DTF Hot Melt Powder
Sublistar DTF powder is specially used for DTF printing. This hot melt powder is a high-purity TPU powder that adheres to ink more precisely than film and has good washability as well as adhesion. Slow-drying and easy to cold-tear. This revolutionary technology will help you get excellent transfer printing results.
- Excellent washing resistance and elasticity.
- Excellent dry-cleaning resistance.
- Excellent bonding strength and fabric lamination.
- Excellent endurance; no pollution.
- Soft feeling.
- Mixed with water-based glue or dusting printing processes.
DTF PET Film
Sublistar DTF films have outstanding anti-static and anti-blocking qualities as well as ink absorption. Non-slip, no oil, no sticking, uniform coating, and easy to peel off. In addition, the final image can be enhanced with a matte, glitter, or shiny effect in hot or cold peel versions, as well as a super soft touch effect. This PET film is specially designed for DTF printers, suitable for mass production, high efficiency, and cost-effectiveness.
DTF Special Film
DTF Rainbow Reflective Film
DTF Rainbow Reflective Film for shining reflective light
DTF Laser Reflective Film
DTF Laser Reflective Film for shining reflective light
DTF Luminous Film
DTF Luminous Film for green light in the dark
DTF Temperature Change Film
DTF Temperature Change Film for more color change
DTF Glitter Transfer Film
DTF Glitter Transfer Film for shiny finishing on prints
DTF Metallic Gold/Silver Film
DTF Metallic Gold/Silver Film for stunning effect
DTF Powder Shaker Machine S10 Dual for Sublistar DTF-1200 Series
Enhance your DTF printing process more with our DTF Powder Shaker Machine S10 Dual. This machine applies hot melt powder on print films, automatically spreads powder, shakes powder, heats and dries, and provides one-stop printing of heat transfer products, improving work efficiency and reducing labor costs.
With DTF printers, batch orders can be completed efficiently and quickly, and personalized orders can also be completed in bulk.
When you purchase our Sublistar DTF-1200 series printer, it comes with this professional DTF powder shaker.
Features
Adjustable Built-In Heating Tube
Flexible infrared heating tubes, S10 heating tubes with reserved space. The number of heating tubes can be increased according to actual needs. Heat the transfer film more evenly. Achieve a better curing effect with lower power, which can lead to energy savings and improved efficiency in the printing process.Exhaust Pipe Purification
Effectively avoids dust overflow in the printing process, avoids staff inhalation, and is more conducive to environmental health.Double Curing Oven
The double curing oven meets the rapid curing requirements of batch production, high speed, and high precision output.
Preheating Bin for Hot Melt Powder
Reduces the moisture of hot melt powder, allowing it to flow smoothly without accumulating powder. Meanwhile, the new partition in the powder bin reduces powder leakage and the frequency of manual powder return.Leakage Protection Function
It can effectively prevent leakage caused by power failure or unstable voltage and protect the equipment circuit and personnel safety.
Low-Frequency Powder Recycling
Low-frequency powder recycling helps minimize the leakage of powder and reduce the frequency of manual powder backup.
Integrated Permanent Purifier
Sublistar self-developed smoke purification treatment technology: no need to replace the filter element regularly.
Depending on the particular printer model, the Sublistar DTF-1200 Series have different variables:
- Number of printheads;
- Print speed;
- Color mode.
Model | DTF-1202 Star IV | DTF-1203 Star IV | DTF-1204 Star IV | DTF-1205 Star IV |
|---|---|---|---|---|
Amount of printheads |
2 |
3 |
4 |
5 |
Print Resolution/Speed |
4pass:10m²/h - 15m²/h 6pass:6.5m²/h - 10m²/h 8pass:3.5m²/h - 6m²/h |
4pass:22m²/h - 34m²/h 6pass:16m²/h - 24m²/h 8pass:12m²/h - 16m²/h |
4pass:38m²/h 6pass:28m²/h 8pass:22m²/h | |
Color mode |
C,M,Y,K+W |
C,M,Y,K+LC,LM +W/ C,M,Y,K+FY,FP+W / C,M,Y,K+O,R,G,B+W |
C,M,Y,K+W |
C,M,Y,K+W; C,M,Y,K+LC,LM+FY,FP+W; C,M,Y,K+O,R,G,B+W |
Dimensions |
2466mm L x 1514.8mm W x 853mm H | |||
Package Size |
2540mm L x 1060mm W x 700mm H | |||
Package Weight |
500kg | |||
Sublistar Warranty
Warranty starts from the date of the equipment handover after the installation and is provided as follows:
- Machinery: 24 months (electronic, electrical and mechanical)
- Printheads: 3-6 months
Warranty Coverage
The warranty specifically covers parts with manufacturing defects within the stated warranty period. It includes the replacement of defective parts (excluding consumables). If the warranty ends, the customer will be responsible for any parts costs and troubleshooting. Customers can install parts themselves or use their technicians, but Sublistar is not responsible for damage caused during the self-repair process.
Media Handling:
Maximum Width: 1200mm
Media Types: PP Synthetic Paper, Vinyl Sheet, Film, Coated Paper, Canvas, Adhesive Vinyl Sheet, Banner and so on.
Ink Specifications:
Ink Types: Water Based Ink, Dye Ink, Sublimation Ink
Ink Colors:
Cyan, Magenta, Yellow, Black, White
Cyan, Magenta, Yellow, Black, Fluorescent Yellow, Fluorescent Pink, Light Cyan, Light Magenta, White
Cyan, Magenta, Yellow, Black, Orange, Red, Blue, Green, White
Ink Capacity: 1.5L
RIP Software / operating system:
FlexiPrint, CADlink Digital Factory, ONYX, Print Factory
DTF-1202 Star IV and DTF-1203 Star IV:
4pass: 10 m²/h – 15 m²/h
6 pass: 6.5 m²/h – 10 m²/h
8 pass: 3.5 m²/h – 6 m²/h
DTF-1204 Star IV:
4pass: 22 m²/h – 34 m²/h
6pass: 16 m²/h – 24 m²/h
8 pass: 12 m²/h – 16 m²/h
DTF-1205 Star IV:
4pass: 38 m²/hour
6pass: 28 m²/hour
8pass: 22 m²/hour
Printhead:
Maximum resolution:
1800 dpi
Network Port
Front/Mid/Rear Heaters (individually controllable)
Environment conditions:
Temperature: 20 – 35°C; Humidity 35 – 65 %
2466*1514.8*853 mm (L*W*H)
Dimensions: 2540*1060*700 mm (L*W*H)
Weight: 500 kg
