DTG M6 Direct To Garment Printer
DTG M6 Direct To Garment Printer
is discontinued for sales in the territory of Vietnam
SKU: DTG-M6
-
For more information
or technical support related to the product
About the product
The DTG Digital® M6 Industrial Direct to Garment Printer is designed for a wider range of textiles: from multiple garment prints to fashion panel decoration. It brings new features including advanced garment platen system that complement the demand for volume printing.
Highlights
Brochures
Technical Specifications
Highlights

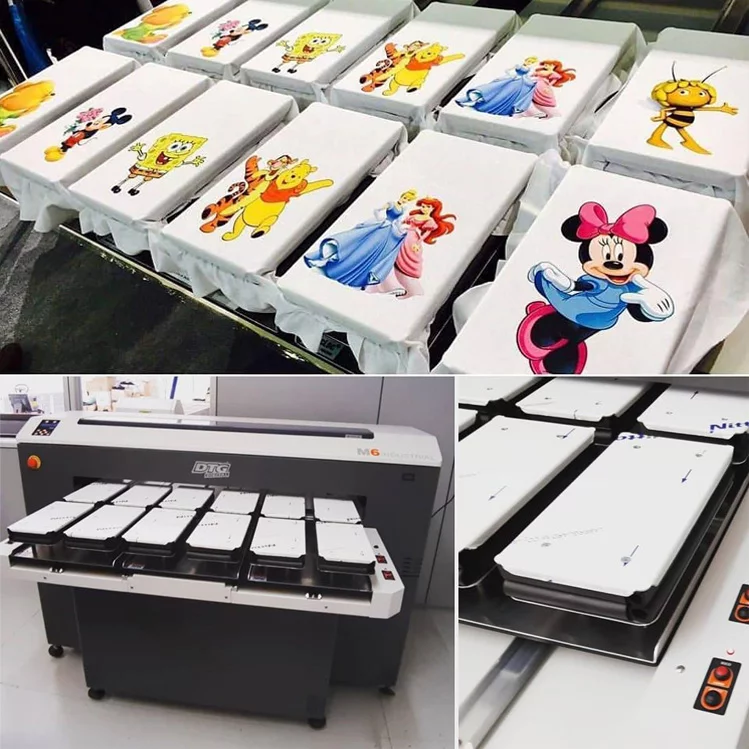

4-2-1 platens
An all-new garment platen system made up of 3 sets of 4-2-1 platens allows prints to 3 x 4XL oversized garments, 6 x standard garments or 12 x smaller garments in one system thus reducing the need for multiple platens in production and utilizing the maximum field space of 1150mm x 650mm (extendable to 750mm) to its full capacity. You can configure your M6 to your market or grow into new markets and expand your profit options – it’s flexible!

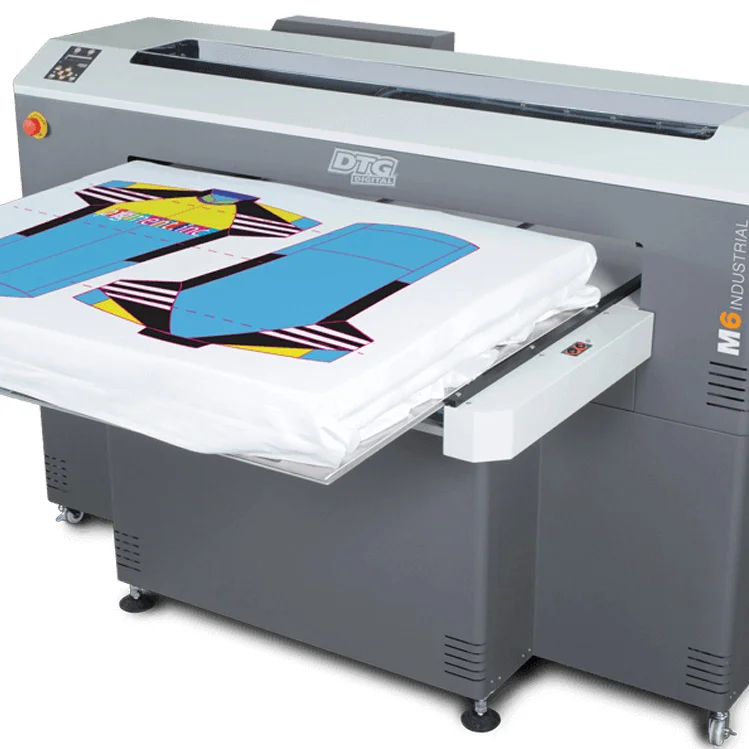

Fashion Panel Printing
There is no need for a roll to roll sticky belt which means a massive reduction in equipment and manpower costs. The DTG Digital M6 supports common panel sizes up to 1100 x 980mm. Fabrics and cut piece as well as multiple finished garments can be decorated at just under 100 square feet per hour with the dual CMYK piezo print head with a minimum 3.5 pl drop size for incredibly fine detail through to 48 pl large ink drops for rapid production with penetration.

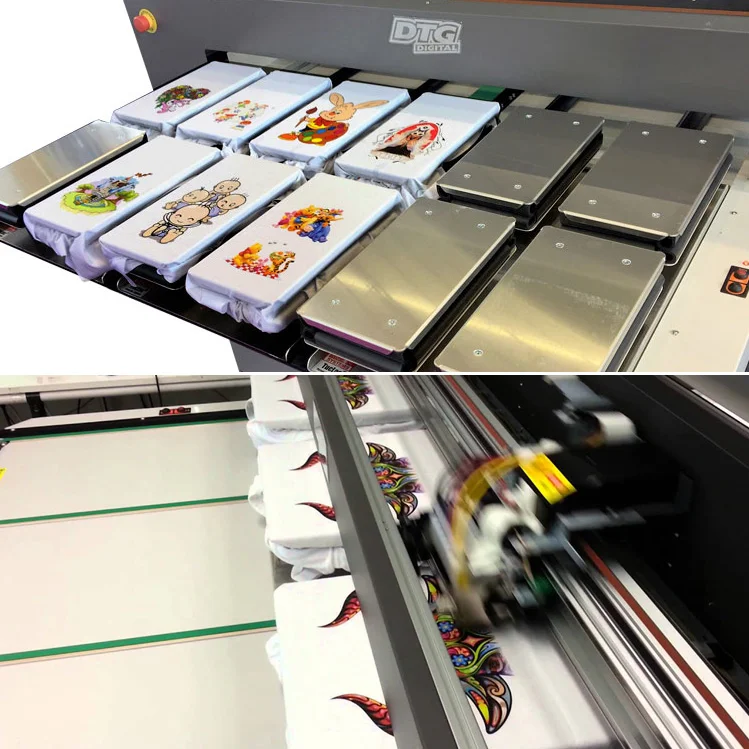

Conveyor Drive System
The unique conveyor drive system with a simple ‘lift-off’ removable platen allows even greater productivity. Simply add a second platen system and prep your garments while the machine is printing, to create a “quick-swap” workflow environment. For ease of use finished garments can either be returned to the front of the machine (if you are operating in a tight area) or can be ejected to the rear of the printer for faster garment reloading.
Brochures
Technical Specifications
Please download M6 Platen List here.
DuPont™ Color E Series Ink
Pigment Direct to Garment Ink
This ink is specially developed for direct-to-garment or digital printing on cotton or cotton-rich blends for a wide variety of apparel and specialty applications. These aqueous-based inks are designed to work in DTG Digital® M6 direct to garment printer and is suitable for high-quality sampling, strike offs and production printing.
Fluxmall DTG is the Authorized Distributor of DuPont™ Artistri® Ink on the territory of Vietnam.
CADlink Digital Factory Apparel Production Edition v10
Much more than RIP software, Digital Factory Apparel v10 Production Edition also provides regularly used job preparation, production workflow tools supporting DTG M6 Direct To Garment Printer. Optimized custom printer drivers along with meticulously created color profiles provide the most accurate, vibrant color reproduction that includes technology-leading, automated white ink management.
Maximum print size:
1150mm x 632mm (44.75″ x 29.5″) (max 750mm)
Printable textiles:
Cotton, polyester, cotton/polyester blends, cotton/spandex blends, linen, viscose, leather, canvas, denim, etc.*
* In case that you have specific requirements for the fabric composition, we recommend you to test printing on your fabric samples during the printer demonstration. Please contact our Sales team for further support.
Print resolution:
up to 2880 dpi
Printhead:
DX-5 piezo printhead, 8 channels, 180 nozzles per channel
Minimum and maximum ink drop size:
3,5-46 pcl
Ink configuration:
Dual CMYK or 4 * White plus CMYK
Ink delivery:
Bottle – pressurised CYMK, Bottle – pressurised re-circulation – white (WIMS)
Drive:
Processor-driven conveyor
Supported operating system:
Windows 10
Power:
AC 110-240V, 50-60Hz, 10A, Consumption – 55W or less, Standby – 5W, Off – 1W
Operating conditions:
Range: 10-30°С (50-86°F) with 30-70% relative humidity
Recommended: 20°C (68°F) with 60% RH
Recommended: 20°C (68°F) with 60% RH

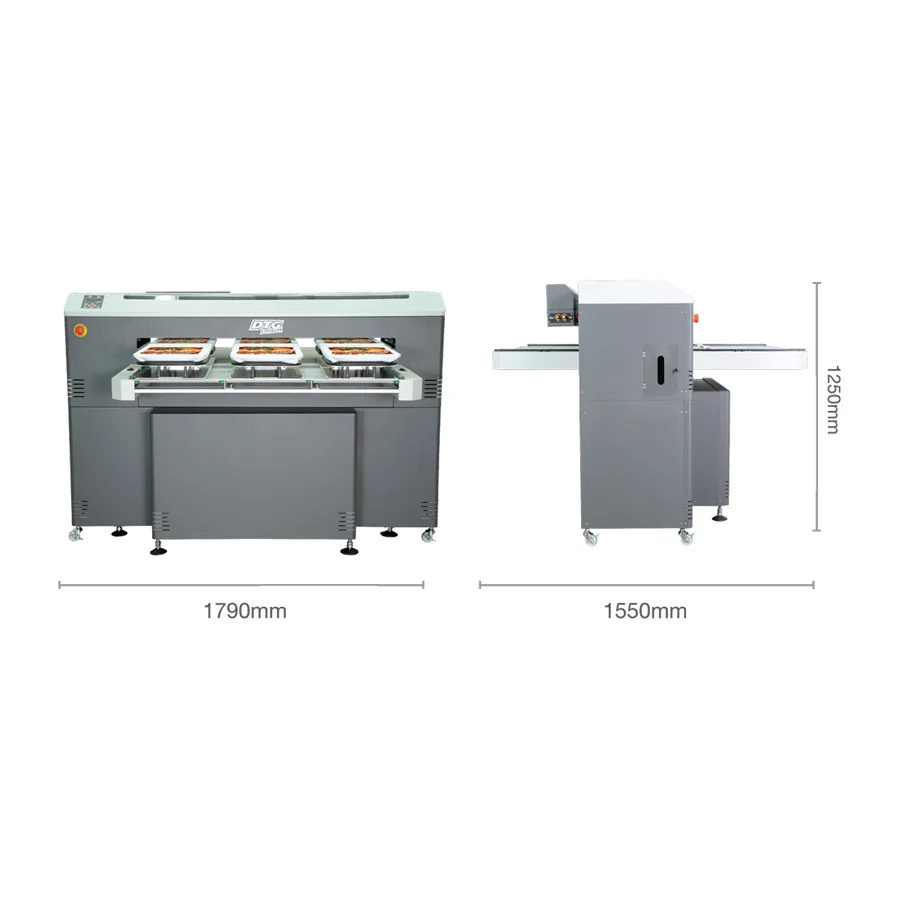

Weight and size:
L 1300 x W 1810 x H 1250 mm (L 51 x W 71 x H 49 in), 170 kg (375 lbs)
Shipping weight and size:
May vary
Previous
Next

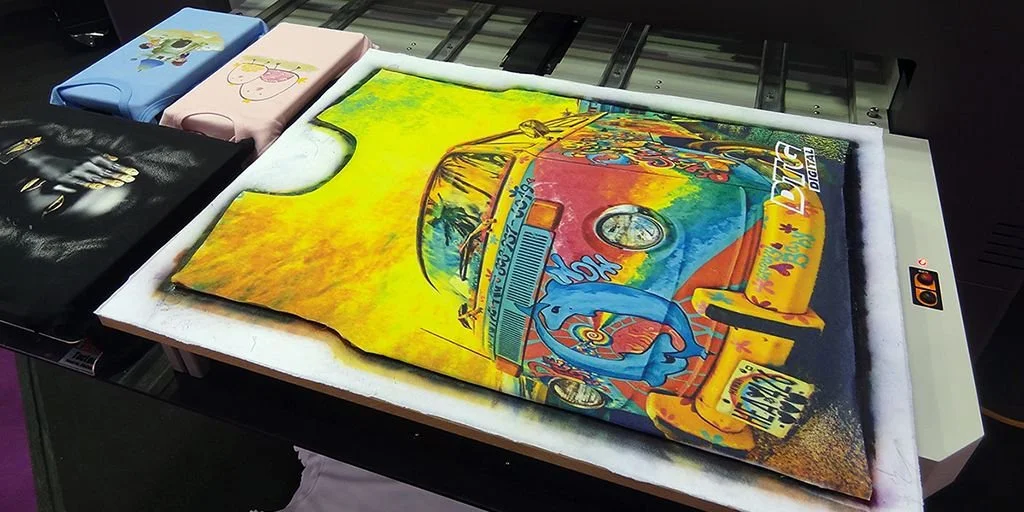

The DTG Digital® M6 powerhouse brings to your business a variety of profit-building applications.
The M6 platen system drastically increases flexibility and productivity allowing more opportunities for profit making volume print production requirements. All-over prints, fast fashion applications, printing custom designed panels for decorating other than apparel, towels, blankets, draperies – everything can you imagine is achievable with DTG Digital® M6 industrial printer.
